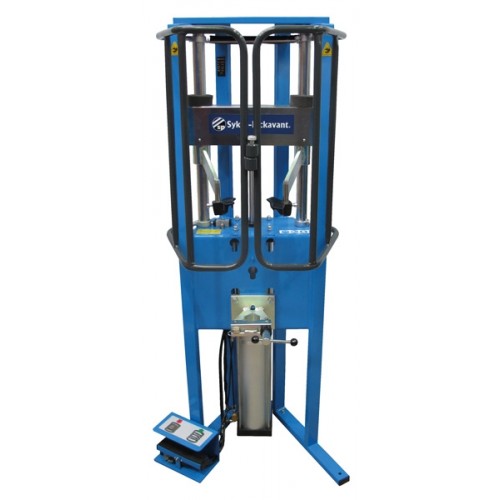

Heavy Duty Pneumatic Coil Spring Compressor

From: Contact us for latest prices

  • Delivery available
  • Includes installation
    (where applicable)
  • Product demo given
Enquire Now Full Description

Or call us on 01691 679900 for more information.

Universal pieces of equipment for assembling and disassembling struts and coil springs - suitable for Cars, 4WD’s and LCV's

  • Automatic jaw levelling pivots to compensate and hold all coil springs including left hand coils
  • Safety switch prevents operation when gates are open
  • Interchangeable jaws / vice to suit different springs
  • Up to 2452kg of force (at 10 bar) at the touch of a pedal
  • Full height steel safety gates
  • Top arms and jaws adjust and lock to secure spring
  • Unique double depth front plate allows safe work on extra long strut assemblies
  • 4 x floor mounting holes for insurance company compliance
  • Safety cut-out for de-activation of cylinder when safety guard is opened


ALS – Auto Levelling System - Auto levelling upper arms simplify working on conical and misaligned springs
Brackets System - Front and side spring clamps designed for fast changeover using unique Brackets System
Aluminium Cylinder Can be used on extra-long shock absorbers (e.g. commercials) due to the long (330mm) stroke of the cylinder. Manufactured from light alloy and resin to eliminate risk of corrosion and internal parts failure

Contents:

- Bracket A: 78 – 130mm (38481200)
- Bracket B: 125 – 205mm (38481300)
- Strut Vice
- Safety Guards

Specifications:

- Dimensions: 1600 x 520 x 300mm
- Working Pressure: 10 bar (150 psi)
- Compression Force: 2452 kg (24500N)
- Cylinder Stroke: 330mm
- CE approved

Fitted with Extra Heavy Duty Pneumatic Cylinder - Ideal for Extra Heavy Duty applications i.e. SUV’s, 4WD’s etc where full spring compression is required
