Available in 4000kg, 5000kg.

Features

• The hydraulic cylinder is located inside the fixed platform and is thus perfectly protected.
• High-resistant, galvanised and pre-stretched metal cables.
• Large-diameter pulleys with self-lubricating and maintenance-free bushes.
• Adjustable platform to accomodate different vehicle tracks and optimised access to vehicle underside.
• Automatic mechanical back-up safety devices (every 100 mm) with pneumatic release allowing stationary operation with unladen cables.
• Immediate-triggering safety stud devices in case a cable slackens or fails.
• Automatic anti-toe trap alarm during final stages of lift descent.
• Mechanical, electrical and hydraulic safety devices in compliance with the prevailing standard for CE marking.
• Low-voltage (24V) electrical system with control circuit.

Models

RAV 4350
RAV 4401
RAV 4405L
RAV 4501L
RAV 4651L
RAV 4800

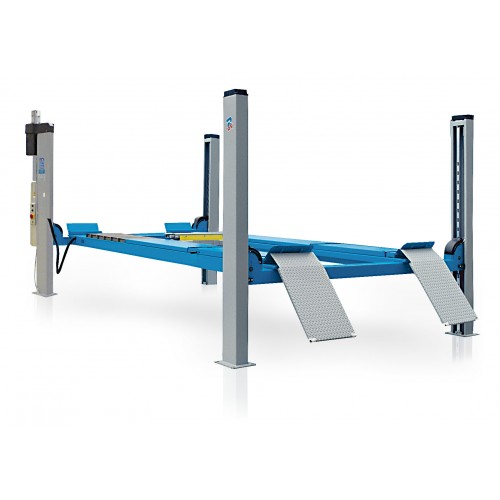

Versions with flat platforms
RAV 4402 / 4000 kg

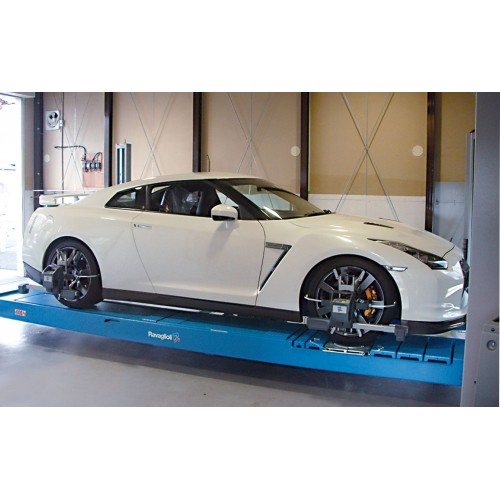

Wheel alignment versions - Platforms for total wheel alignment with front turning plates locations and rear slip plates.
Low-friction rear slip plates. They can be manually locked in the central position. Transverse and angular movements in both directions.
RAV 4406L / 4000 kg
RAV 4502L / 5000 kg
RAV 4652L / 6500 kg
RAV 4802 / 8000 kg

Wheel alignment versions - Extra-long platforms for total wheel alignment with front turning plates locations and rear slip plates.
RAV 4401 SI / 4000 kg

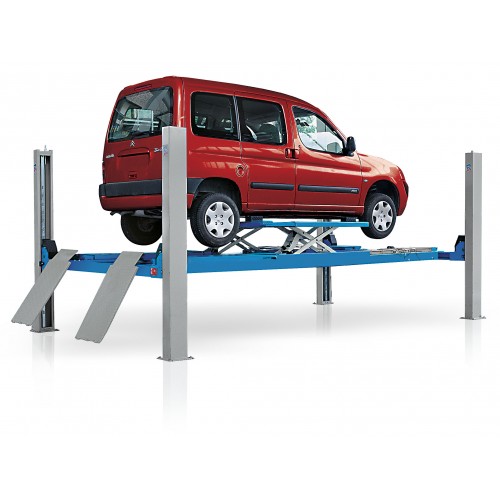

Versions with wheel free lift - Optimum size for cars and light-duty commercial vehicles.
RAV 4405E SI / 4000 kg

Versions with wheel free lift - The long platforms (5100 mm) and the large inner distance between posts allow lifting of light commercial vehicles and long-wheelbase vans.
RAV 4402 SI / 4000 kg

Versions with wheel free lift for wheel alignment - Optimum size for cars and light-duty commercial vehicles.
RAV 4406ELSI / 4000 kg

Versions with wheel free lift for wheel alignment - The long platforms (5100 mm) and the large inner distance between posts allow optimum lifting of light commercial vehicles and longwheelbase vans.
RAV 4401.4 / 4000 kg
RAV 4400.4 / 4000 kg

Lifts with built in play detectors - Equipped with front play detectors.
