Features

• Perfect Level
• Total Safety

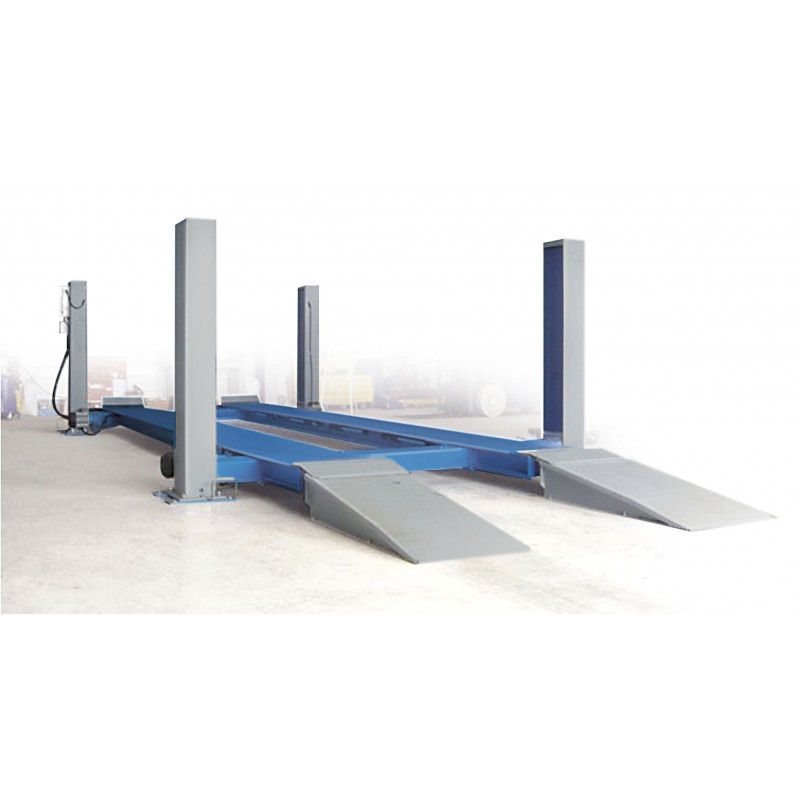

• Extended Platforms - Maximum access to the vehicle thanks to the special concept of extended platforms, unique feature of fhe Ravaglioli range of commercial lifts. Space is freely available to fit any part, including the engine

Models

KP440NE / 24T
KP440E / 20T
KP442NE / 14T
KP442E / 12T

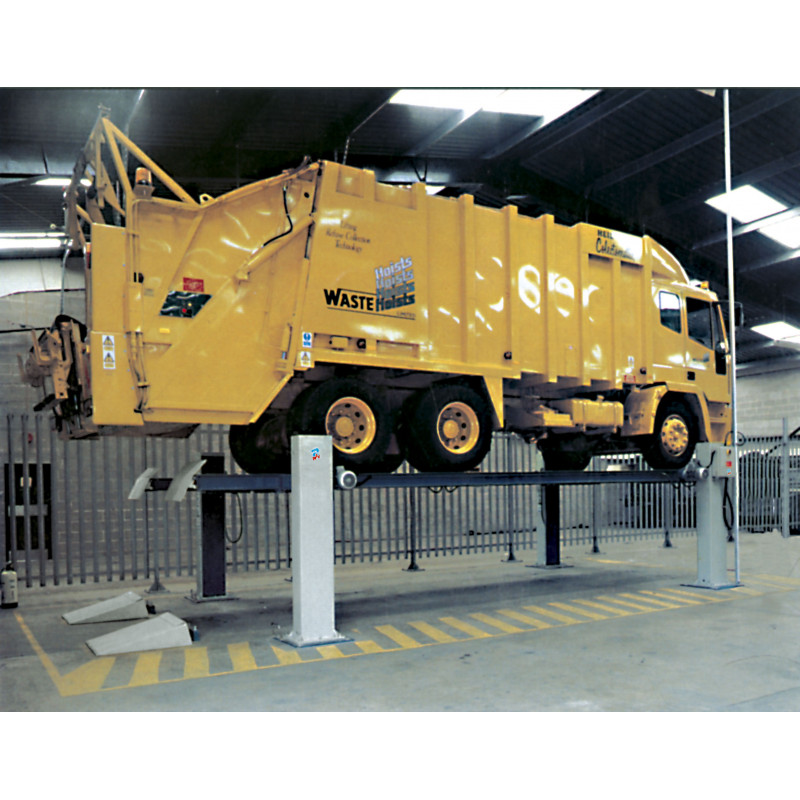

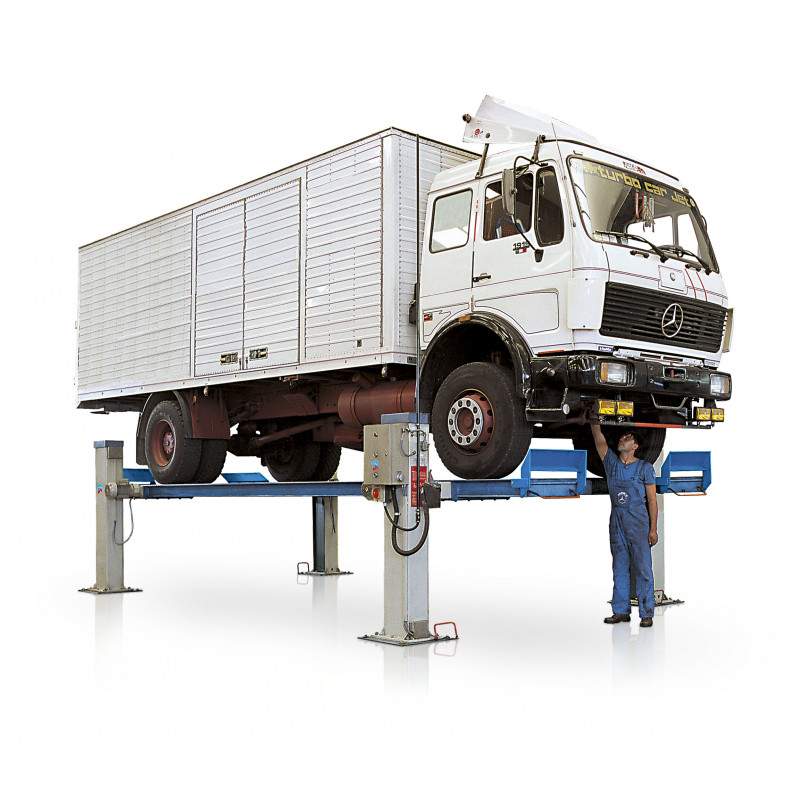

The platform length and the capacity of these lifts make them ideal for busses and trucks.
KP175E / 10T - 3740 mm

Lifts for fork lifts
KP118N - KP118NP / 13,5T

Twin-piston hydraulic/airhydraulic wheel-free jack. Operated by means of hand-pump or air-hydraulic pump (vers. NP)
Pneumatic feed pressure 6 ÷10 bar. Translation on ball-bearing

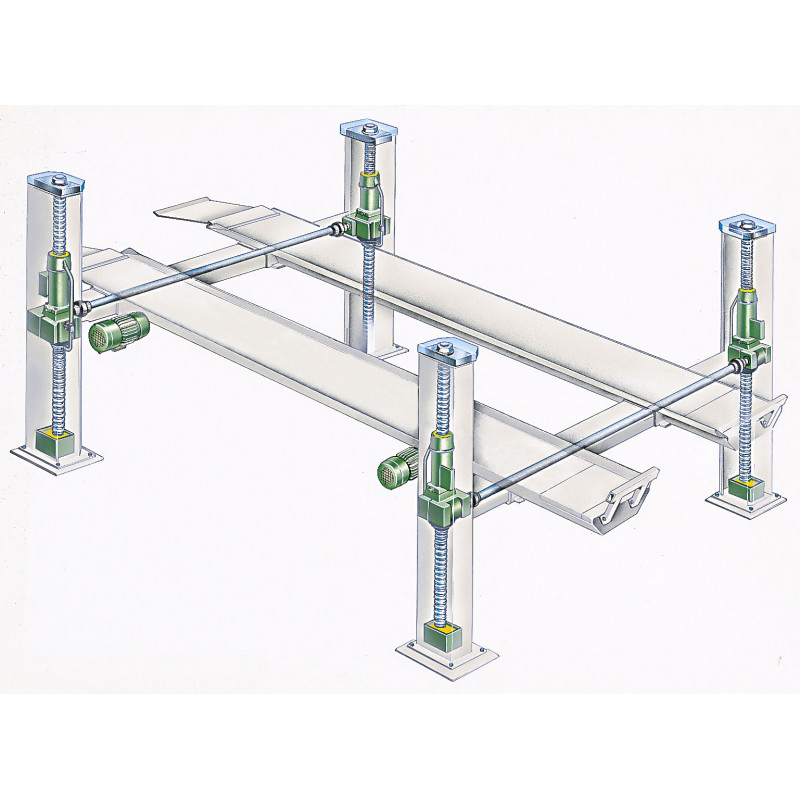

The motors are inter-connected mechanically by line shafting and bevel gear boxes in oil bath to ensure the perfect level of the platforms and balanced load on motors regardless of vehicle position.

Only one adjustment is made during the installation, never during operation as there are no parts subject to yielding or lengthening such as cables and load bearing chains. Motor protection by thermal relay is provided to prevent burning out in case of overloading or lack of one phase.

Automatic lubrication of main and safety nuts and spindles is achieved by a plunger pump, one in each column, which ensures positive lubrication every time the lift is raised thus ensuring long life and smooth running. Automatic lubricati on of main and safety nuts and spindles is achieved by a plunger pump, one in each column, which ensures positive lubrication every time the lift is raised thus ensuring long life and smooth running.
Main and safety nut assembly. A safety switch automatically stops motion should the lift encounter a solid obstacle during lowering.

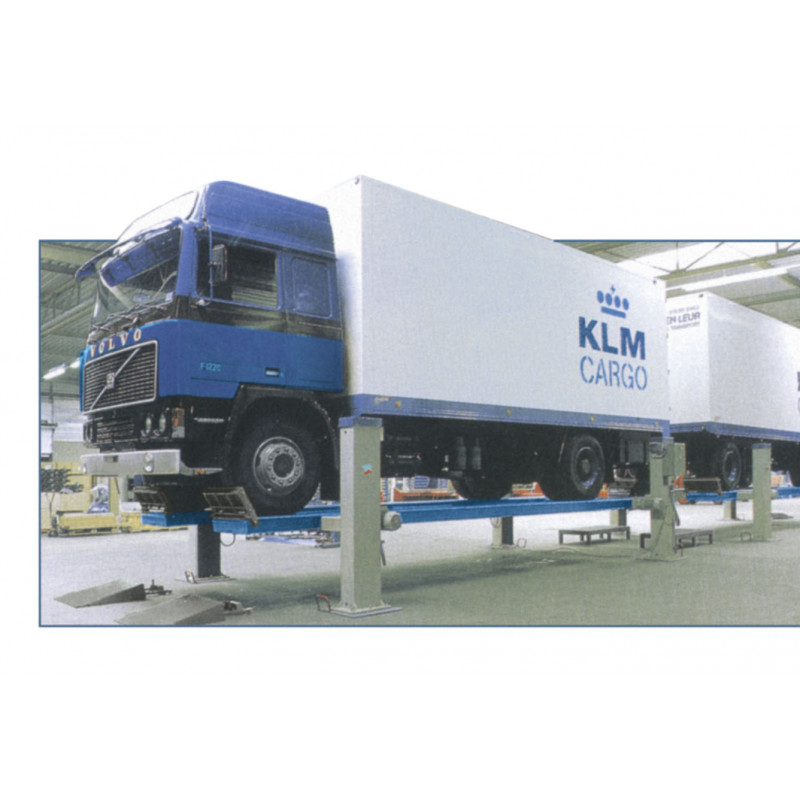

DUO-Twin lifts

KP440NE-440E-442NE-442E can be twinned as follows:
a) synchronised, therefore with the two lift platforms working at the same height;
b) in single mode, therefore with the two lifts working independently with platforms at different height;
This solution enables the lifting of particularly long vehicles but also allows, in single mode, to make the lifts work separately to service the more common vehicles, therefore granting double return on the investment.
